MACHINES D'EMBALLAGE

Polybag Maker Bag Inserter Machine from Roll Stock Film Bag inserter machine for making and inserting bags in boxes by one each. This China-made fully-automatic poly bag inserter cuts and seals film as a bag from a roll stock, inserts it in a formed case, opens and cuffs the bag over the case tops, blows air to extend the liner to fit the internal wall of box better. The liner bag inserting machine reduces labor and material costs, is simple to operate and easy to adjust. This is an ideal machine for bulk box packaging of bread rolls, edible oil and fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures, golfs and other. It will be more efficient and save more labor if this poly bag inserter works with a carton erector as the combination can be an automatic lined carton forming line. Specifications: Bag making and Inserting capacity: 6-7 cartons/min Film width: 460-840mm Applicable carton dimensions: L250-550*W200-400*H150-40 0mm, also can be customized Power supply: 3 phase, 4.5 kW Compressed air: 6 bar Air consumption: 300 NL/min Machine dimensions: L2,500*W1,600*H2,300mm (for reference only) We are also able to manufacture high-speed bag inserter with 12 cartons/minute.

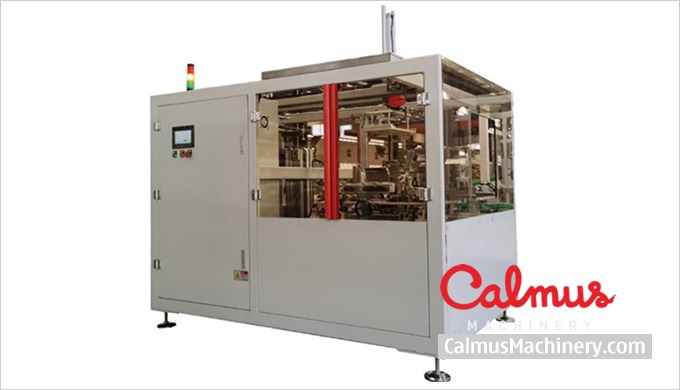

One Piece Cardboard Wrap Box Former This one piece wrap box former picks one-piece die-cut cardboards from the storage tray, delivers them to be shaped with a punch in a cave, folds and seals edges with hot melt glue. Specifications: Forming capacity: 10 boxes/min for 10L Applicable carton size: L150-350*W150-300*H26-65mm Feed material: one-piece die-cut cardboards Power: single-phase 220-240V/110-120V or customized, 1.5 kW Compressed air: 6-7 bar Air consumption: 100 NL/min Dimensions: L1,900*W1,400*H700mm (subject to the final approval)

Calmus Machinery has recently received CE certification from Istituto Giordano for our Poly Bag Inserters CL71 and CL7X. This certification complies with the machinery standards: EN 12100, EN 415-10, EN 60204-1:2018, and EN 415-3. Istituto Giordano is a renowed Certification Body for products, processes, materials, and services, headquartered in Italy. They are a European Notified Body (No. 0407) for Directive 2006/42/EC Machinery. EN 12100 - Safety of machinery - General principles for design - Risk assessment and risk reduction. EN 415-10 - Safety of packaging machines - Part 10: General Requirements. EN 60204-1:2018 - Safety of machinery - Electrical equipment of machines - Part 1: General requirements. EN 415-3 - Safety of packaging machines - Part 3: Form, fill, and seal machines. The CL71 is our basic poly bag inserter with a capacity of 6-7 cartons per minute. The CL7X is our high-speed bag inserter capable of handling up to 13 cartons per minute. The poly bag inserters are designed to line cartons with polybags one by one. The machines cut and seal polyethylene film from a roll stock, forming it into a bag, which they then insert into a pre-formed box. They proceed to open and cuff the bag over the carton top flaps and blow air to expand the bag, ensuring a better fit against the internal walls of the box. The box lining machine reduces labor and material costs, is simple to operate, and easy to adjust. Both poly bag inserter machines are ideal for bulk box packaging of bread rolls, edible oils and fats, fruits and vegetables, granules and nuts, meats and fish, caps and closures, and other items. Efficiency and labor savings can be maximized by pairing this poly bag inserter with a carton erector, creating an automatic lined carton forming line. To verify the certification, please visit Istituto Giordano China verification page and enter our Certificate Number 101033/2653/C and Contract Number CHIG24043333. Calmus Machinery is a division of Brentorma, which is the certificate holder.
