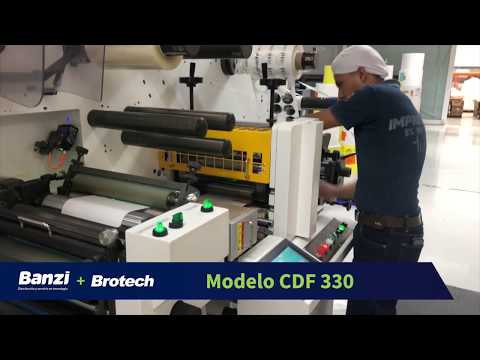

Brotech CDF Flexographic Printing Machine

Finishing System for Digitally Printed Labels

Brotech CDF is the most cost-effective and commercially available multifunctional system for processing digitally printed labels. The machine is fully servo-driven and equipped with a fully rotary flexographic printing unit and a fully rotary/semi-rotary die-cutting unit.

Specifications
ModelCDF 330CDF 420Maximum web width340 mm430 mm
Maximum unwind reel diameter700 mm700 mm
Maximum rewind reel diameter600 mm600 mm
Maximum die cutting width330 mm420 mm
Maximum semi-rotary die cutting speed70 m/min70 m/min
Maximum semi-rotary die cutting repeat length457 mm457 mm
Maximum working speed130 m/min130 m/min
Die cutting accuracy±0.15 mm±0.15 mm
Air supply8 bar8 bar
Power supply3PH+N+PE3PH+N+PE
Dimensions (L × W × H)3.7 × 2.1 × 1.6 m3.7 × 2.2 × 1.6 m
Weight2.5 tons3 tons
Print Substrate (Standard Configuration)
The standard material thickness ranges from 35 to 250 µm (range can be extended). It can cut film, paper, and thin cardboard. The machine can be adapted to cut other substrates.
Unit Features

Fully rotary flexographic unit:
Flexographic printing, varnishing, laminating, cold gilding.
Fully rotary/semi-rotary die-cutting unit:
Ability to change the operation mode of the rotary die-cutting unit from the control panel.
